Umbrella Sampling Example#
In this notebook we will progressively populate the windows of an Umbrella Sampling simulation starting from a starting configuration in a metastable state. For our example we will use capped alanine dipeptide and sample along the ψ dihedral, but it should be easy enough to adopt this example to other molecular systems and sampling coordinates.
We will start by running a short(ish) Umbrella Sampling in the window that is closest to the initial configuration, then use the freshly generated trajectory to populate the next window using the configuration which is closest to the next window center. Since we also continue to run the simulation in the initial window, we now have two windows running simultaneously. The third Umbrella Sampling window is the populated using a configuration from the short(ish) initial integration in the second window, such that we now have three simulations running. This process is repeated until all windows are populated and finally all simulations are continued until each window has reached a predefined number of integration steps. See the illustration below for a visual representation of the algorithm.
%matplotlib inline
import asyncio
import os
import matplotlib.pyplot as plt
import numpy as np
from collections import abc
import asyncmd
import asyncmd.gromacs
import asyncmd.trajectory
Could not initialize SLURM cluster handling. If you are sure SLURM (sinfo/sacct/etc) is available try calling `asyncmd.config.set_all_slurm_settings()` or `asyncmd.config.set_slurm_setting()` with the appropriate arguments.
Define a class to handle the Umbrella Sampling for each window#
It will take care of running the simulation of a single US window.
We will pass it a coroutine function at initialization that will provide the seed trajectories, i.e. the trajectories from which it will select the initial configuration, as soon as said trajectories are ready.
This enables us to successively setup the windows by running each window for a shortish time (n_steps_initial) and then use the resulting trajectories to seed the neighboring window.
class UmbrellaSamplingWindow:
def __init__(self, window_center: float,
seed_trajectories_generator: abc.Callable[[], abc.Awaitable[list[asyncmd.Trajectory]]],
workdir: str,
# we expect this to be a wrapped CV returning an 1d-array of shape (len(traj),)
#progress_cv: asyncmd.trajectory.functionwrapper.TrajectoryFunctionWrapper,
# but in fact it can be any awaitable that returns a 1d-numpy-array and takes an asyncmd.Trajectory
progress_cv: abc.Callable[[asyncmd.Trajectory], abc.Awaitable[np.typing.NDArray]],
n_steps_initial: int, n_steps_total: int,
engine_cls: type[asyncmd.gromacs.GmxEngine],
engine_kwargs: dict, walltime_per_part: float,
):
assert n_steps_initial <= n_steps_total
self.window_center = window_center
self.seed_trajectories_generator = seed_trajectories_generator
self.workdir = workdir
self.progress_cv = progress_cv
self.n_steps_initial = n_steps_initial
self.n_steps_total = n_steps_total
self._first_trajectories = None
self._all_trajectories = None
self._propagator = asyncmd.trajectory.InPartsTrajectoryPropagator(
n_steps=self.n_steps_initial,
engine_cls=engine_cls,
engine_kwargs=engine_kwargs,
walltime_per_part=walltime_per_part,
)
async def await_first_trajectories(self):
while self._first_trajectories is None:
await asyncio.sleep(10)
return self._first_trajectories
async def generate_first_trajectories(self):
# return the first trajectories running for n_steps_initial steps
if self._first_trajectories is not None:
return self._first_trajectories
initial_conf = await self._get_initial_conf()
print(f"Window at {self.window_center}: Initial configuration written.")
trajectories = await self._propagator.propagate(
starting_configuration=initial_conf,
workdir=self.workdir,
deffnm="us",
)
print(f"Window at {self.window_center}: First trajectories done.")
self._first_trajectories = trajectories
return trajectories
async def _get_initial_conf(self):
# wait for seed trajectories, then find conf closest to window center,
# write this initial conf to workdir and return it
seed_trajs = await self.seed_trajectories_generator()
extractor = asyncmd.trajectory.convert.NoModificationFrameExtractor()
# Iterate over all seed trajectories to find the configuration with minimal
# distance to the window center
all_cv_vals = await asyncio.gather(*(self.progress_cv(t) for t in seed_trajs))
min_traj_idx = 0
min_dist = None
for traj_idx, cv_vals in enumerate(all_cv_vals):
dists = (cv_vals - self.window_center)**2
if min_dist is None or (np.min(dists) <= min_dist):
idx = np.argmin(dists)
min_dist = dists[idx]
min_traj_idx = traj_idx
# extract the configuration
window_start_conf = await extractor.extract_async(
# TODO/FIXME: this is the only point where we assume gromacs engine
outfile=os.path.join(self.workdir, "window_start.trr"),
traj_in=seed_trajs[min_traj_idx],
idx=idx,
)
return window_start_conf
async def generate_trajectories(self):
# return all trajectories by first doing the "first_trajectories", then
# reset the propagator to n_steps_total and finally run until it is done
if self._all_trajectories is not None:
return self._all_trajectories
if self._first_trajectories is None:
await self.generate_first_trajectories()
# first reset the number of steps!
self._propagator.n_steps = self.n_steps_total
# little hack to enable restart/continuation with new number of steps
trajectories = await self._propagator.propagate(starting_configuration=None,
workdir=self.workdir,
deffnm="us",
continuation=True,
)
print(f"Window at {self.window_center}: All trajectories done.")
self._all_trajectories = trajectories
return trajectories
Setup the progress coordinate ψ#
We will use the predefined collective variable function for the ψ and φ dihedrals of capped alanine dipeptide that is included with the example notebooks.
# import the descriptor function
cwd = os.path.abspath(os.getcwd())
# chdir to the resources folder so we can import the function
os.chdir("../resources/")
from ala_cv_funcs import descriptor_func_psi_phi
os.chdir(cwd) # change back to the initial directory
# and wrap it
psi_phi_wrapped = asyncmd.trajectory.PyTrajectoryFunctionWrapper(descriptor_func_psi_phi)
async def psi_wrapped(traj):
# we only need psi and we want a 1d-array
# also we want it in degree and not radians
deg = 180/np.pi
return (await psi_phi_wrapped(traj))[:, 0] * deg
Set simulation parameters (workdir, number of steps, window centers, MD engine parameters)#
#TODO: set this to a convenient path
workdir = "."
nsteps_initial = 10000 # 20 ps since dt = 2 fs
nsteps_total = 20 * nsteps_initial
# Define windows along progress coordinate (the psi-angle of ala)
# state alpha_R: -50 degree < psi < 30 degree
# state C7_eq: 120 degree < psi < 200 degree
# Note that window_centers must be an ordered list of floats,
# starting with the window closest to the initial configuration(s)
window_centers = [30, 60, 90, 120]
# Engine definition
# Note that we create and add the mdconfig object for each window separately below.
# There we directly set the correct window center values for the pull-code and more.
engine_kwargs_base = {"gro_file": "../resources/gromacs/capped_alanine_dipeptide/conf.gro",
"top_file": "../resources/gromacs/capped_alanine_dipeptide/topol_amber99sbildn.top",
"ndx_file": "../resources/gromacs/capped_alanine_dipeptide/index.ndx",
"mdrun_extra_args": "-nt 2",
"output_traj_type": "XTC",
}
mdconfig_file = "../resources/gromacs/capped_alanine_dipeptide/md.mdp"
engine_cls = asyncmd.gromacs.GmxEngine
walltime_per_part = 1/(600) # 10 s expressed in units of hours
Load the initial configuration(s)#
# Define initial configuration (we just use a configuration in alpha_R)
# Note that this somewhat weird function mirrors what we will/would get from
# UmbrellaSamplingWindow.await_first_trajectories and what the UmbrellaSamplingWindow
# expects as seed_trajectory_generator: a coroutine function that returns a list
# of trajectories.
# We will use this function to initialize the first of our UmbrellaSamplingWindows.
async def get_initial_confs():
return [asyncmd.Trajectory(
trajectory_files="../resources/gromacs/capped_alanine_dipeptide/conf_in_alphaR.trr",
structure_file="../resources/gromacs/capped_alanine_dipeptide/conf.gro",
)
]
Setup the UmbrellaSamplingWindow objects#
# loop over window centers: setup pull-code in mdp,
# each window gets the first_trajectories of the previous window via seed_traj_gen,
# we put the initialized UmbrellaSamplingWindow objects into the windows list
windows: list[UmbrellaSamplingWindow] = []
# setup for the first window (we need a function to "generate" the seed trajectories for it too)
seed_traj_gen = get_initial_confs
for wc in window_centers:
# prepare the mdp (and the engine_kwargs containing it) with the correct window center
engine_kwargs = engine_kwargs_base.copy()
mdconfig = asyncmd.gromacs.MDP(mdconfig_file) # load our standard mdp file
# setup gromacs pull-code for the current window
mdconfig["pull"] = "yes"
mdconfig["pull-nstxout"] = 1000
mdconfig["pull-nstfout"] = 1000
mdconfig["pull-ngroups"] = 4 # we have 4 atoms/groups per dihedral
mdconfig["pull-ncoords"] = 1 # we build 1 pull coord from the 4 groups
# our 4 atoms defining the ψ dihedral
mdconfig["pull-group1-name"] = "psi_at1"
mdconfig["pull-group2-name"] = "psi_at2"
mdconfig["pull-group3-name"] = "psi_at3"
mdconfig["pull-group4-name"] = "psi_at4"
mdconfig["pull-coord1-type"] = "umbrella" # make it a harmonic potential
mdconfig["pull-coord1-geometry"] = "dihedral" # around the dihedral
mdconfig["pull-coord1-groups"] = ["1", "2", "2", "3", "3", "4"] # defined by our 4 atoms
# Note: the force-constant stiffness determines the possible window spacing,
# i.e. the higher the force constant the closer the window centers must be
# to result in overlap between the windows
mdconfig["pull-coord1-k"] = "110" # force constant in kJ/ (mol * rad**2)
mdconfig["pull-coord1-init"] = round(wc, 2) # reference angle in degree
# IMPORTANT: We set gen-vel=yes because we use a no-modification frame extractor
mdconfig["gen-vel"] = "yes"
# and finally set the output frequencies
mdconfig["nstxout-compressed"] = mdconfig["nstlog"] = 100 # write XTC and log
mdconfig["nstxout"] = mdconfig["nstvout"] = mdconfig["nstfout"] = 0 # disable TRR
engine_kwargs["mdconfig"] = mdconfig
# make sure the workdir for this window exists
window_workdir = os.path.join(workdir, f"window_center_{round(wc, 2)}")
os.makedirs(window_workdir, exist_ok=True)
# now initialize the window object
us_window = UmbrellaSamplingWindow(
window_center=wc,
seed_trajectories_generator=seed_traj_gen,
workdir=window_workdir,
progress_cv=psi_wrapped,
n_steps_initial=nsteps_initial,
n_steps_total=nsteps_total,
engine_cls=engine_cls,
engine_kwargs=engine_kwargs,
walltime_per_part=walltime_per_part,
)
windows += [us_window]
seed_traj_gen = us_window.await_first_trajectories
Run all Umbrella Sampling windows at once#
Due to the way we have defined the dependencies in the above cell this will successively populate the windows and run them all until they reach n_steps_total steps in each window.
all_trajectories = await asyncio.gather(*(w.generate_trajectories() for w in windows))
Window at 30: Initial configuration written.
Window at 30: First trajectories done.
Window at 60: Initial configuration written.
Window at 60: First trajectories done.
Window at 90: Initial configuration written.
Window at 90: First trajectories done.
Window at 120: Initial configuration written.
Window at 120: First trajectories done.
Window at 30: All trajectories done.
Window at 60: All trajectories done.
Window at 90: All trajectories done.
Window at 120: All trajectories done.

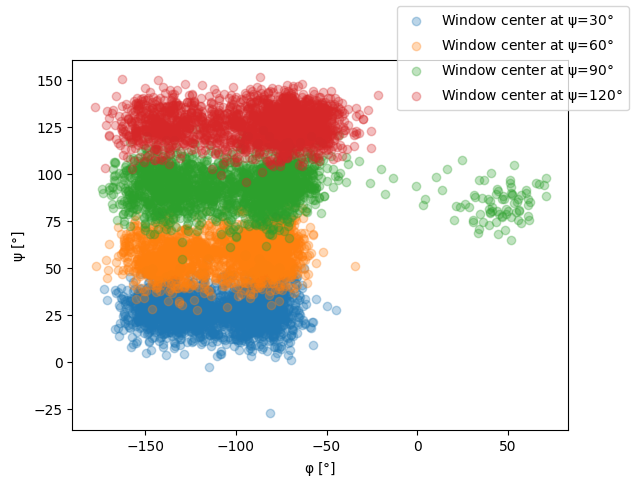

Analyze/plot the generated trajectories#
Currently we only have a quick look at the configurations in the ψ-φ-plane by making a scatter plot colored by window. We would also want to extract a potential of mean force from the data using (binless)WHAM and ideally we would additionally perform the Umbrella Sampling simulation again, but this time starting from a configuration in \(C7_{eq}\) (i.e. “the other side”) to be able to assess the effects of potential hysteresis on the potential of mean force.
# calculate ψ and φ values for all configurations (they are in radians!)
all_psi_phi_values = []
for trajs_for_window in all_trajectories:
all_psi_phi_values += [await asyncio.gather(*(psi_phi_wrapped(traj) for traj in trajs_for_window))]
# and make the scatter-plot
fig, axs = plt.subplots()
deg = 180/np.pi # we want to plot in degree but psi_phi_wrapped is in radians
for wc, psi_phi_for_window in zip(window_centers, all_psi_phi_values):
axs.scatter(y=np.concatenate(psi_phi_for_window, axis=0)[:, 0] * deg,
x=np.concatenate(psi_phi_for_window, axis=0)[:, 1] * deg,
label=f"Window center at ψ={wc}$\\degree$",
alpha=0.3,
)
axs.set_ylabel("ψ [$\\degree$]")
axs.set_xlabel("φ [$\\degree$]")
fig.legend();
